Nexcom

Mobile Computing Solutions (MCS) for Port Logistics

Summary

Founded in 1992 and headquartered in Taipei, Taiwan, NEXCOM is committed to being your trustworthy partner in building the intelligent solutions.

Focusing on the transportation sector, NEXCOM Mobile Computing Solutions (MCS) Business Unit, looking to a future where transport is made more intelligent and sustainable.

Port, Fleet and Warehouse Management are the key activities in logistics. To address these three areas, NEXCOM offers three series of vehicle computing and display solutions—the Vehicle Telematics Computer (VTC) series, the Vehicle Mount Display (VMD) series, and the Vehicle Mount Computer (VMC) series – each with a customer-driven design to ensure needs are met. NEXCOM MCS can turn smart mobility into reality and increase efficiency and productivity for commercial fleets and field operations.

Contact Details

9F, No.920, Chung-Cheng Rd, Chung-Ho Dist

New Taipei City

235

Taiwan R.O.C.

leochang@nexcom.com.tw

VMC 4511-K

10.4″ Rugged Vehicle Mount Computer with Intel® Core™ i7, Touch Screen and IP65 VMC 3500/3501, 10.4-inch all in one robust vehicle mount computer, is designed for the transportation, warehouses and material handling application. Adopting the latest high performance processor Intel® Core i, it integrates the high resolution LCD with the brightness of 1000 nits (sunlight readable) and 5-wire resistive touch. VMC 4511-K is extreme ruggedness, whose aluminum enclosure compliant with IP65 is designed against vibration, dust, moisture and chemical impacts. It provides RS-232, USB 2.0, DIO, CFast, and LAN to connect with necessary accessories. Besides, CANBus2.0B can help to get immediate car status for diagnosis. VMC 3500/3501 also offer GPS, WLAN and WWAN for remote communication purpose. Thus, the VMC VMC3500/3501 is an ideal solution for vehicle terminal on forklifts, gantry crane, straddle carriers, truck, mining vehicles, and construction machines. – 10.1″ XGA TFT LCD monitor with 5-wire resistive – Compact and fanless design – Built-in Intel® Core™ i7-2610UE processor – Automatic/manual brightness control – On screen F1 ~ F10 programmable function keys – GPS, WLAN, and WWAN supported – CANBus 2.0B, and J1939 for car diagnostic – Robust design with Die-cast aluminum – All enclosure compliant with IP65 – Wide range DC input from 9 ~ 36V – Sunlight readable solution with 1000 nits display – Military test standard for vibration and shock – Operating system: Windows & Linux

VMC 3500/3501

VMC 3020

10.4″ Rugged Vehicle Mount Computer with Intel® Atom™ x5-E3930 processor, Touchscreen and IP65 VMC 3020, 10.4-inch all in one robust vehicle mount computer, is designed for the warehouses, logistic and material handling market. It implements the latest Intel® Atom™ x5-E3930 processor (codename Apollo Lake) and can work on Windows and Linux for different OS. markets. To work well in the special warehouse application, VMC 3020 specially designs powered I/O (up to 12V DC out) to power on printer, scanner… Besides, heater inside VMC 3020 can help forklift resume to work quickly when it stays in snow for a long time. Back-up battery can assist system without stopping working if power battery in forklift suddenly drops down. 1,200 nits brightness is for sunlight readable purpose. – 10.4″ XGA TFT LCD monitor with 5-wire resistive touch – Aluminum die-casting and fanless design – Built-in Intel® Atom™ x5-E3930 processor, 1.8GHz – Automatic/manual brightness control – Touch with heater supported – On screen F1 ~ F10 programmable function keys – Powered USB and COM (5V/12V, 1.5A) for accessories – Military standard for vibration and shock – UPS Battery supported – iButton and RFID for ID identification – Wide range DC input from 9V~60V DC in – Sunlight readable capability: 1,200nits LCD brightness – Operating system: Windows and Linux – CE/FCC/EMark

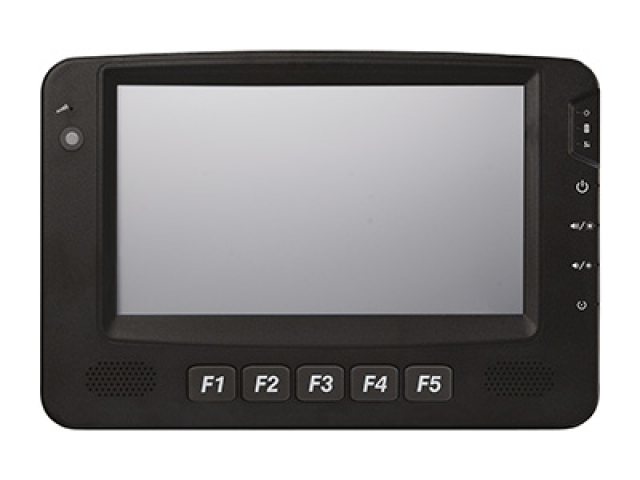

VMC 1100

7″ All-In-One Mobile Data Terminal with Touch Screen and Intel Baytrail platform VMC 1100, a new generation 7-inch vehicle mount computer with dual core Intel® Atom™ processor, is designed for transportation and harbor applications requiring real-time vehicle tracking and job-dispatching. For real-time communication between driver and central control room, VMC 1100 provides the capability of wireless connection from GPS, WLAN to WWAN. To get more data from accessories, it offers RS-232, RS-485, USB 2.0, GPIO, and LAN connection. Dual CANBus 2.0B ( OBDII and J1939 protocol ), analog input and PWM are able to help to receive car status more quickly and correctly. Due to the unique features above, VMC 1100 is perfect to use in harbor application from container truck, forklift, container stacker…. – 7″ WVGA TFT LCD Monitor with resistive touch screen – Built-in Intel® Atom™ Dual Core E3825 1.33GHz – Compact and fanless design – On screen programmable F1 ~ F5 function keys – Support GPS/WWAN tracker function for car-safety – RFID for ID identification – Built-in GPS (Option: Dead Reckoning Support) – GPS/WLAN/WWAN for wireless communication – Dual CAN bus 2.0B and optional OBDII (SAE J1939) for car diagnostic – Wide Range DC input from 9 ~ 36V – Military standard for vibration and shock – SAE J1113, ISO7637-2 and SAE J1455 conformity for power design – CE/FCC/EMark

VMC 110/111

NEXCOM Mobile Computing SolutionsProduct Selection Guide

NEXCOM VMC 4511-K

NEXCOM VMC 3500/ 3501
